Textures & Fonts _


indent Model railroading magazines and train shows are excellent resources to explore what model railways can become - a miniaturized virtual world that draws one in. In practice, a modular railway is arguably a series of interconnected dioramas. A modular wooden railway can acheive that in a more rugged fashion using durable materials that leverage photgraphic images in lieu of more fragile detailing. Those images can be photos that are modified and scaled. They could also be composite images constructed using graphics, textures and fonts.

Graphic Details redline

indent Buildings, walls, roads, and other module surfaces can be enhanced visually with imaginative materials and custom images - paint, laminate, acrylic, and digital photos. This is also a great way to refurbish existing buildings and bridges that had a rough life in the toy box.

indent Images can be as simple as pictures taken of nearby buildings or walls and then scaled appropriately. A composite image can also be assembled with graphics software in combination with stock photos, textures, fonts, and visual elements from a variety of sources. Public domain images can be found online, and many commercial image or texture collections are available.

Public Domain redline

indent A web search will turn up many sources for free textures and images. Many sites are marked as having 'dangerous downloads' which is something to keep in mind... Available images were often low resolution, distorted, or skewed at an angle. Color quality was sometimes poor with some or all of the image washed-out. Tileable versions are uncommon. Many images were also incomplete, lacking edges for example.

indentfree textures

Commercially available images and collections redline

indent Images and textures are available from various online sources. Texturama offers building pictures as well as architectural textures and individual images that can be purchased. A hobby version of their collection is available, from which selected elements were used in combination with personal photos to create graphic details incorporated into my modules. Sources for textures and images that may be of interest include:
indent texturama.com
indent absolutetextures.com
indent shutterstock.com

indentcommercial textures

Fonts redline

indent A variety of fonts and logos associated with railways are available. These can be used on railroad signage and rolling stock to bring a sense of historic realism to the layout. Graphics and photos used for buildings and accessories can be customized with new building names and signage too.
indent railfonts.com
indent fontspace.com
indent dafont.com


Original images and textures redline

indent With a decent camera and basic graphic editing tools, one can create quality custom images. An overcast day is best to minimize harsh shadowing. Shown are a few developed using photos taken during a trip to Manhattan. Pictures were taken with a Canon EOS 20D camera, manipulated with Adobe Photoshop Elements 2.0, and corrected for lens distortion using the PTLens plugin from ePaperPress. Additional details outlining one method for manipulating images to generate a straight-on front view follows...

indentcustom textures

Creating custom images from photos redline

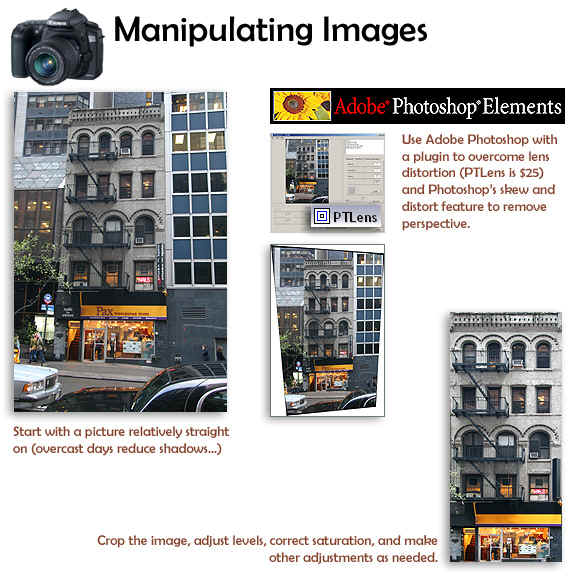

indent A number of resources and instructions can be found online. Above are the basic steps involved using one of my building photos as an example.

indentbefore and after photo

Applying Custom Images redline

indent 3M Super 77 spray adhesive works well for affixing custom images to wood blocks and train cars. Coat both surfaces for a really strong bond. For crisp, clean building lines - use a black or warm gray permanent flow pen (e.g. Sharpie) on the edge of the photo to darken the exposed white paper edge. Paste the building front and one side first. Then sand the opposite side and back face to the final dimensions. Glue the remaining side and back and then sand the top and base flush. Attach a roof image or sloped roof on top to finish the building. Touch up any remaining white spots with your black pen and then varnish the building to protect it and remove the photographic sheen.

indent Consider crushing the sharp corners on the block using the shaft of a screwdriver - curling the photographic edges slightly inward. Routing a notch into exposed corners and inserting a thin strip of hardwood (e.g. walnut or maple) might improve durability as exposed edges tend to fray over time.
